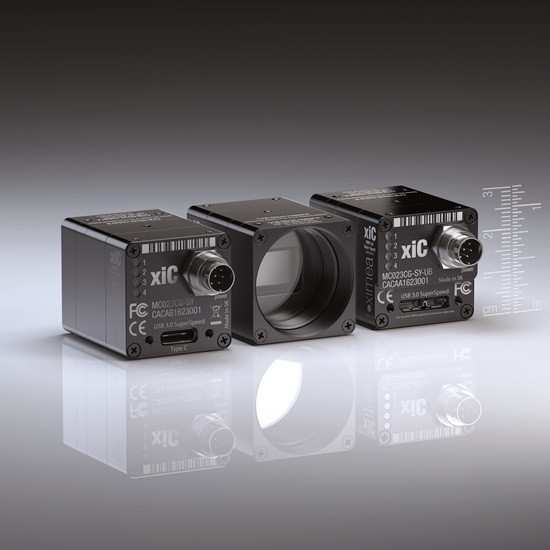

Models of Sony CMOS cameras with USB 3.1 Gen 1:
| B/W model | Color model | Sensor | Resolution | Pixel µm | ADC bits | Frames per sec(1) | DR dB | Optical size | Power Watt |
|---|---|---|---|---|---|---|---|---|---|
| MC023MG-SY | MC023CG-SY | Sony IMX174 | 1936 x 1216 | 5.86 | 12/10 | 165 fps | 71.7 | 1/1.2" | 2.4 |
| MC031MG-SY | MC031CG-SY | Sony IMX252 | 2064 x 1544 | 3.45 | 12/10/8 | 122 fps | 70.9 | 1/1.8" | 2.75 |
| MC050MG-SY | MC050CG-SY | Sony IMX250 | 2464 x 2056 | 3.45 | 12/10/8 | 76 fps | 70.8 | 2/3" | 2.85 |
| MC089MG-SY | MC089CG-SY | Sony IMX255 | 4112 x 2176 | 3.45 | 12/10/8 | 43 fps | 70.5 | 16.1 | 3.25 |
| MC124MG-SY | MC124CG-SY | Sony IMX253 | 4112 x 3008 | 3.45 | 12/10/8 | 31 fps | 70.4 | 17.6 | 3.25 |
(1) Maximum frame rates measured at 8 bits per pixel RAW data in free run mode. Please check faster versions available from xiX line based on PCIe interface
All models are also available in Board level version with flat flex ribbon cable or with USB Type C connector on request: info@ximea.com
Common features:
| Sensor technology | CMOS, Pregius™ technology |
|---|---|
| Acquisition modes | Continuous, software trigger, hardware trigger (Global Shutter) |
| Partial image readout | ROI / AOI (region/area of interest), Skipping and Binning modes supported (check manual for details) |
| Image data formats | 8, 10, 12 bit RAW pixel data |
| SDK/API | Programmable with C++ and C# |
| Color image processing | Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS, lookup table (LUT), hue, saturation, sharpness, white balance and more |
| Hot/blemish pixels correction | On camera storage of up to 5000 pixel coordinates, host assisted correction |
| Auto adjustments | Auto white balance, auto gain, auto exposure, HDR (High Dynamic range) |
| Flat field corrections | Host assisted pixel level shading and lens corrections. This feature is being developed and tested |
| Interface | USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard |
| General purpose I/O | 1x opto-isolated input, 1x opto-isolated output, 2 GPIO, 4x LED software programmable |
| Signal conditioning | Programmable debouncing time |
| Synchronization | Hardware trigger input, software triggering, exposure strobe output, busy output |
| Lens mount | Standard C mount. Adjustable into CS mount |
| Power requirements | 3 Watt, supplied via USB 3.0 interface |
| Dimensions | 26.4 x 26.4 x 33 mm (USB 3.0 Micro-B version) |
| Weight | 38 grams (Micro-B version) |
| Environment | Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage |
| Conformity | CE, FCC, RoHS, GenICam/GenTL, USB 3.1 Gen 1, USB3 Vision Compliant |
| Operating systems | Windows 7 SP1 (x86 and x64), W8, 8.1, 10, Linux Ubuntu, ARM, Mac OS X |
| Minimum host hardware | Intel i3 3.0GHz, +2GB RAM available physical memory, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter |
| Software support | xiAPI SDK, adapters and drivers for various image processing Libraries |
| Firmware updates | Field firmware update through xiCOP |
