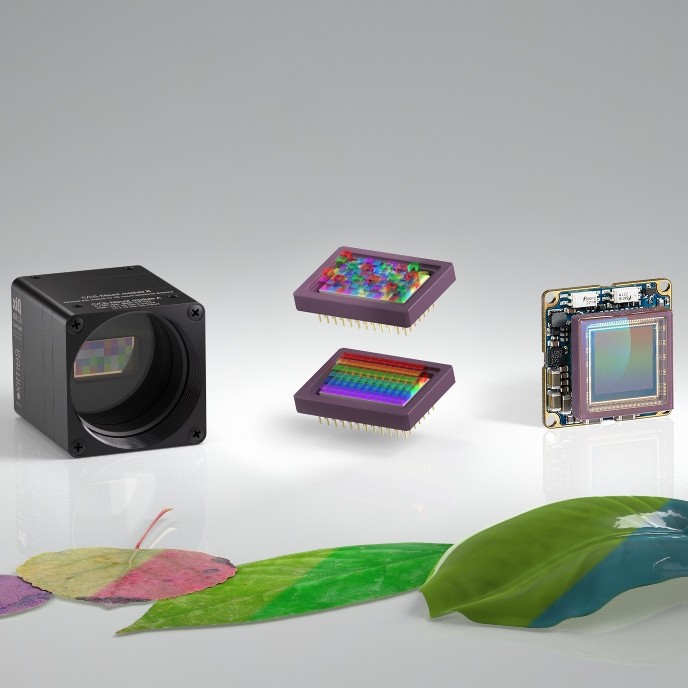

xiSpec Linescan, Snapshot Mosaic hyperspectral models:
| Model | Sensor Type | Spectral range [nm] | Spectral Bands | Scans/Cubes per sec | Spatial resolution |
|---|---|---|---|---|---|
| MQ022HG-IM-LS100-NIR | Linescan | 600-975 1) (typically: ~630-970) | 100+ | up to 1360 lines/s | 2048 x 8 3) |
| MQ022HG-IM-LS150-VISNIR | Linescan | 470-900 2) | 150+ | up to 1020 lines/s | 2048 x 5 3) |
| MQ022HG-IM-SM4X4-VIS | Snapshot Mosaic | 470-630 | 16 | up to 170 cubes/s | 512 x 272 (4x4) 4) |
| MQ022HG-IM-SM5X5-NIR | Snapshot Mosaic | 600-975 (typically 600-950/975) 5) | 25 | up to 170 cubes/s | 409 x 217 (5x5) 4) |
Note 1: in 4 nm steps, Note 2: in 3 nm steps, Note 3: There is no spatial resolution in case of Linescan sensors. Width is 2048 and 8 or 5 are number of lines.
Note 4: There is no typical value, these are Approximate numbers of pixels. The original sensor resolution can be interpolated.
Note 5: Sensor specific, let’s talk about your requirements
Common features:
| Sensor technology | CMOS, Hyperspectral filters added at wafer-level on top of the pixel structure of the sensor |
|---|---|
| Acquisition modes | Continuous, software trigger, hardware trigger (Global Shutter) |
| FWHM (Full width at half maximum) | 10 - 15 nm (TBD) |
| Image data formats | 8, 10 bit RAW pixel data |
| SDK/API | programmable with C++ and C# |
| Interface | USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard |
| General purpose I/O | 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable |
| Signal conditioning | Programmable debouncing time |
| Synchronization | Hardware trigger input, software triggering, exposure strobe output, busy output |
| Lens mount | Standard C mount. Available options are CS mount |
| Power requirements | 1.6W, supplied via USB 3.0 interface |
| Dimensions | 26.4 x 26.4 x 31 mm (C-mount version) |
| Weight | 32 grams (C-mount version) |
| Environment | Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage |
| Conformity | CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed, USB3 Vision Compliant |
| Operating systems | Windows 7 SP1 (x86 and x64), W8, 8.1, 10, Linux Ubuntu, ARM, Mac OS X |
| Minimum host hardware | Intel i3 3.0GHz, +2GB RAM available physical memory, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter |
| Software support | xiAPI SDK, adapters and drivers for 30 various image processing Libraries |
| Firmware updates | Field firmware update through xiCOP |
