Evolve EMCCDs

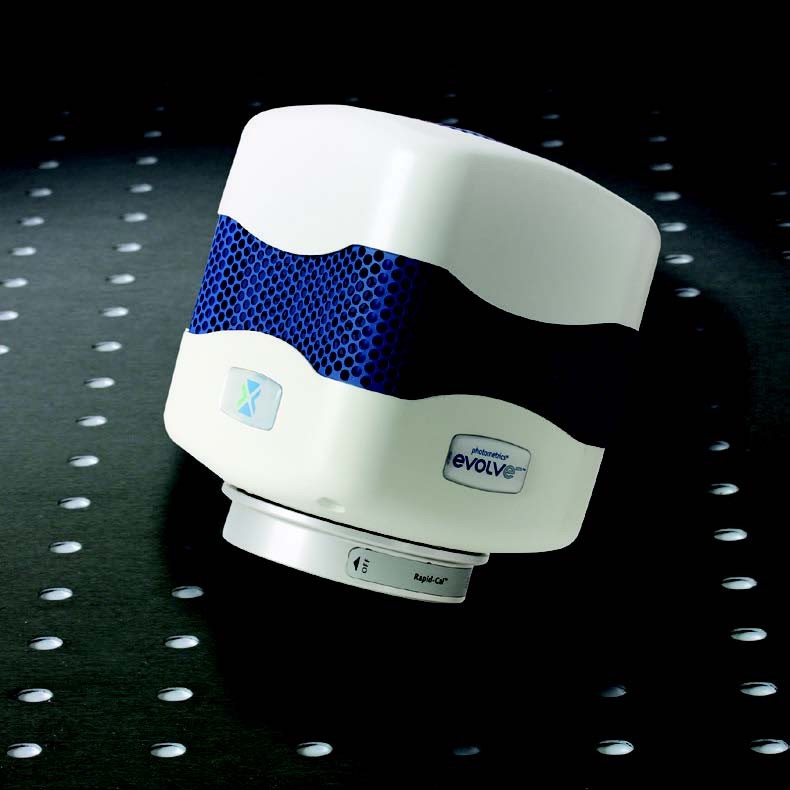

Evolve® 512

Specifications

Sensor

E2V CCD97

Array Size

512 x 512

Pixel Size

16 x 16µm

Signal Pixel Full - Well

185,000e-

EM Register Full - Well

800,000e-

Digitization

16 - Bit

Interface

IEEE 1394a ( FireWire )

Read Noise ( e- rms )

Without EM Gain

With EM Gain

20 MHz EM Port

75e-

< 1e

10 MHz EM Port

65e-

< 1e

5 MHz Stabdard Port

18e-

625 MHz Standard Port

6e-

Bias Stability

A mesurement of the camera stability when no light hits the sensor.

≤ 0. 001 ADU/Frame

A slope of zero would be ideal.

Linearity

> 99%

Field uniformity

20 MHz EM 1.065

The image quality of the EMCCD is assessed for gradients. A complete lack of any

10 MHz EM 1.003

gradient would provide a numerical value of 1.00

5 MHz EM 1.012

.625 MHz 1.008

Stabilized Cooling tempureture

Air cooled ( @ ambient air 20°C ) - Standard -75°C

Liquid cooled ( @ ambient air 20°C ) - Optional -75°C

Dark current

0.0003e- / pixel / sec

Background event

0.002 events / pixel ( @ 1000x EM gain )

( 20 MHz, 1000x EM gain ) Standard operation

Rarallel Shift Rate

0.200 µseconds

The shift rate optimized by maximum frame rates while providing externaly high

charge transfer efficiency and minimal generation of clock - induced charge

Triggerinr Modes

Trigger first

HardWare triggering enables synchronization between many different system component

Stoere

All triggering models are supportred in overlab and non - ovelap read out modes

Buib
