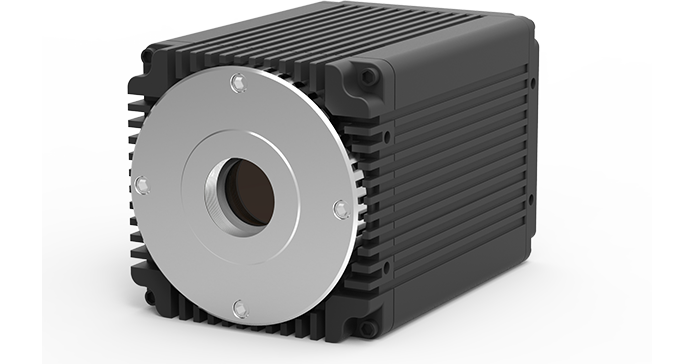

Pixel correction, DSNU/PRNU optimization, more accurate quantitative analysis
In order to improve the overall performance of the camera, the Dhyana 400BSI V2.0 features optimized DSNU (dark signal non-uniformity) and PRNU (photo response non-uniformity). When optimized, the DSNU value has been reduced from 0.3e- to 0.2e-, the PRNU value has been reduced from 1.6% to 0.3%. Thus the camera has a more sophisticated capabilities, making it more suitable for quantitative analysis applications.
-15°C low temperature dark current control to further reduce the impact of noise on imaging
The Dhyana 400BSI V2.0 can operate at -15 °C at a room temperature of 20 °C. Compared with 1.2e- readout noise and 0.2e-DSNU, the dark current noise corresponding to 100 milliseconds is less than 0.02e-. The effect on sCMOS high-end imaging applications is almost negligible.
.png)
Wide spectral response range, high sensitivity
With its ultra-low noise, the quantum efficiency advantage of Dhyana 400BSI V2.0 is very significant. This is a huge breakthrough for scientific applications, not only in the visible region, but also in the ultraviolet and near-infrared.

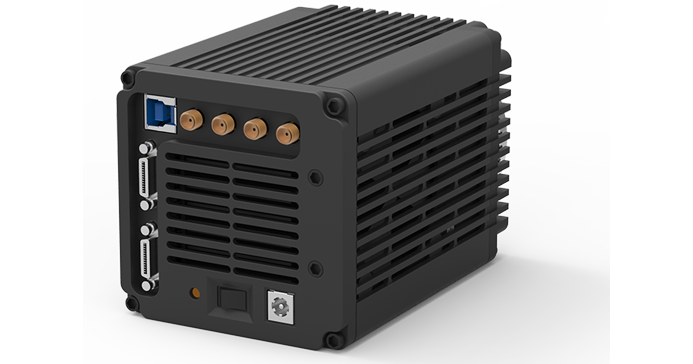

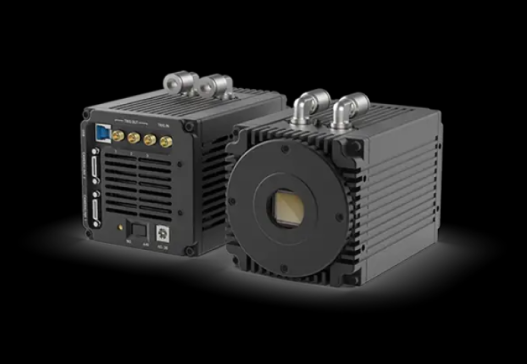

74fps using CameraLink, 40fps using USB3.0, faster data capture
In addition to the signal to noise ratio advantage, the Dhyana 400BSI V2.0 has enhanced transmission speed, on one hand though the new CameraLink interface to meet the needs of high-end imaging research for higher frame rates, on the other hand through hardware improvements that increase the USB 3.0 throughput. These have achieved the ultimate transfer rate of 74fps with CameraLink and 40fps with USB3.0 at 4.2 MP full resolution.
.png)
| Model | Dhyana 400BSI V2.0 |
| Sensor size | 1.2〃 |
| Sensor model | G2020BSI (Backside-illuminated sCMOS) |
| Color/monochrome | Monochrome |
| Quantum efficency | 60%@254nm，95%@550nm，50%@850nm |
| Effective no. of pixels | 2048(H) x 2040(V) |
| Pixel size | 6.5um x 6.5um |
| Effective area | 13.3mm × 13.3mm |
| Full well capacity | 30000e- |
| Frame rate | 74fps@(4.2MP via CameraLink), 40fps@(4.2MP via USB3.0) |
| Readout noise | 1.2e-(Median)，1.8e- (RMS) |
| Shutter type | Rolling shutter |
| Exposure mode | Manual / Auto |
| Exposure time | 6.6μs-10s |
| DSNU | 0.2e- |
| PRNU | 0.30% |
| Cooling method | Peltier cooling |
| Cooling temperature | Forced air(Ambient at +20℃):-15 ℃ |
| Dark current | 0.15 electrons/pixel/s (-15 ℃) |
| Dynamic range | 88dB |
| Binning | 1x1 / 2x2 |
| Sub-array | Available |
| External trigger mode | Standard/Synchronous/Global trigger |
| Trigger delay function | 0-10s(1μs steps) |
| Trigger output | 3 programable timing outputs (Exposure/Global/readout signal) |
| External trigger routing | SMA |
| Digital interface | USB3.0 / CameraLink |
| SDK | Support |
| Bit depth | 16 bit |
| Lens mount | C-mount |
| Power supply | 12V/8A |
| Power consumption | 55W |
| Camera size | 85mm x 85mm x 125mm |
| Parameter settings | White balance, Exposure, Contrast, Gamma, 3D denoise, Saturation, Flat fielding |
| PC software | Mosaic/LabVIEW/Matlab/Micromanager |
| Compatible system | Windows/Linux/Mac |
